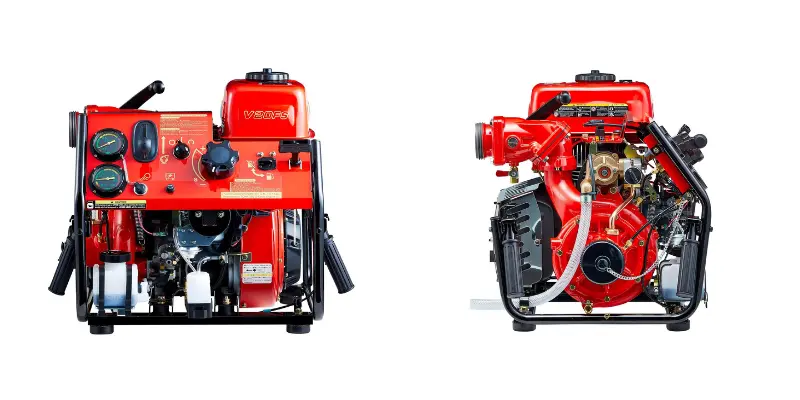

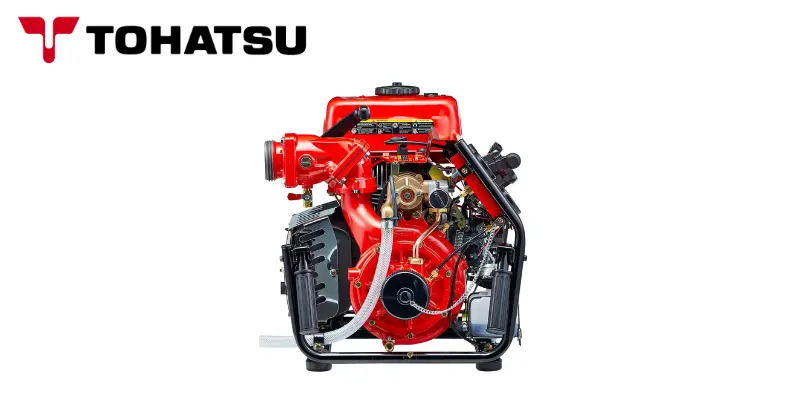

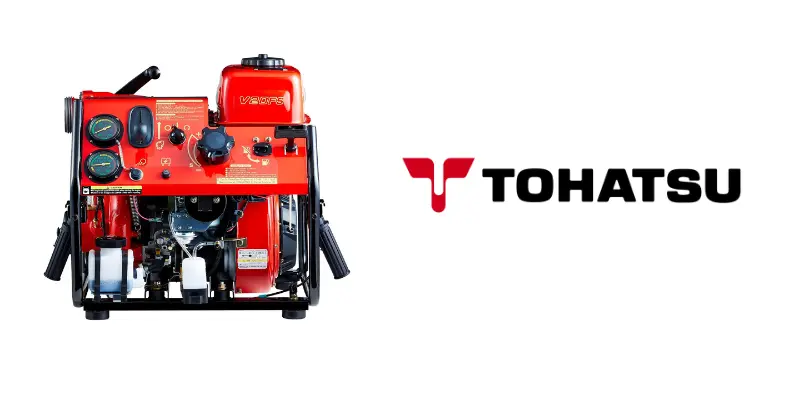

Tohatsu Pump Portable V20FS

Deskripsi

There is also a model that available for sale in EU.

Small and compact with unmatched pump performance

Engine 198mL Tohatsu 2-stroke, air-cooled gasoline engine Authorized output11.7PS (8.6kW)Pump performance 525 liter /min. at 0.6MPa 250 liter /min. at 0.8MPa Priming Rotary vane vacuum pump Dry Weight46kg

Specification V20FS

• Engine
• Type : 2-stroke
• Number of Cylinder : 1 Cylinder
• Cooling System : Air Cooled
• Bore x Stroke : 66 x 58 mm (2.6 x 2.28 inch)
• Piston displacement :198 mL (12.0 cu in)
• Output : 8.6 kW (11.7 PS)
• Fuel Type Unleaded Gasoline (Min. 87 Octane)
• Fuel Tank Capacity 5.95 Lit (1.57 gal)
• Fuel Consumption 5.9 Lit / Hr (1.56 gal / Hr)
• Fuel System Single Carburetor with Auto Choke
• Oil Tank Capacity 0.5 Lit (0.13 gal)
• Suction
• Starting : Electric and manual
• Suction System : 4 Blade Rotary-vane vaccum pump (Oilless-type)
• Priming System : Manual
• Pump
• Pump Type : Single Suction, Single Stage centrifugal pump
• Suction Thread and Dia. : JIS 2-1/2″ (65mm) & BSP 2-1/2″ (65mm)
• Discharge Thread and Dia. : JIS 2-1/2″ (65mm) & BSP 2-1/2″ (65mm)
• Discharge Number : Single
• Discharge Valve : Flat
• Weight
• Dry Weight : 46 kg (101.4 lbs)
• Wet Weight : 52 kg (114.7 lbs)

Dimension(mm)

Overall Length x Width x Height : 530 x 475 x 537
